Product Overview

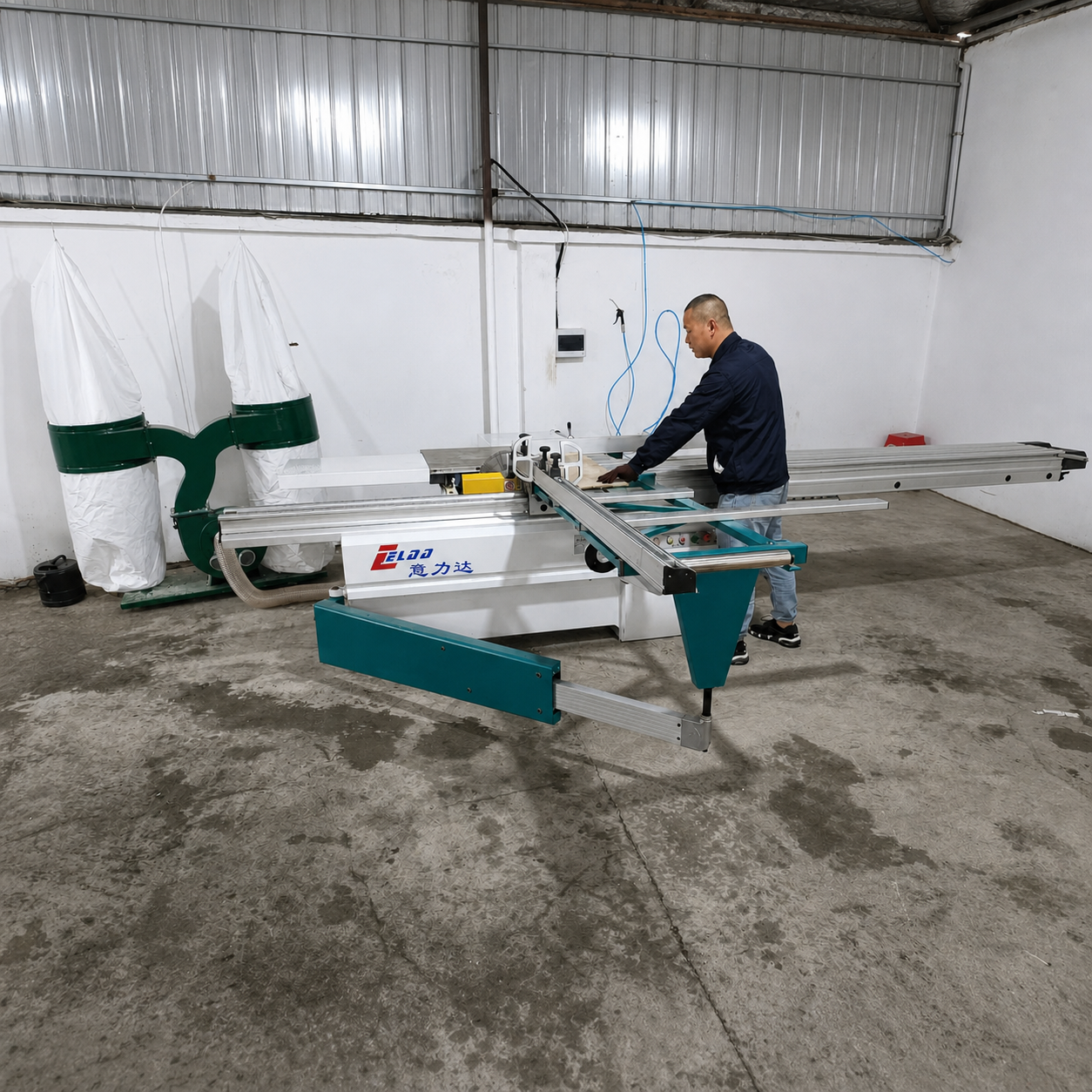

Panel cutting system for honeycomb, corrugated and composite boards with long feed travel. Long feed stroke supports full-size paperboard panels. Suitable for honeycomb, corrugated and composite sheet materials. Guided cutting improves straightness and repeatability. It is positioned for packaging manufacturers, converters and engineering buyers evaluating equipment for a defined production process. Configuration should be finalized against the buyer's board samples, target format, utilities, workflow and acceptance criteria.
Key Features
- Long feed stroke supports full-size paperboard panels
- Suitable for honeycomb, corrugated and composite sheet materials
- Guided cutting improves straightness and repeatability
- Worktable supports large panels during positioning
- Adjustable stops help repeat common finished dimensions
- Designed for panel sizing before assembly or further converting
Product Specifications
| Model | S90 |
|---|---|
| Maximum Feed Stroke | 3000 mm (existing product data) |
| Materials | Honeycomb, corrugated and composite board |
| Process | Straight panel cutting |
Specifications marked as existing product data should be reconfirmed for the final order. Unlisted technical values are supplied after application review.
Applications
- honeycomb panel sizing
- corrugated sheet trimming
- composite board cutting
- protective packaging components
- industrial panel preparation
Customization Options
- cutting length and table size
- blade and dust collection setup
- positioning stops
- feed assistance
- electrical standard
- guards and extraction connection
Packaging & Shipping
Before shipment, exposed surfaces and moving parts are protected, loose accessories are identified, and the machine is secured in an export-suitable package. Final packing and transport arrangements depend on machine configuration, route and destination requirements.
Manufacturing & Quality Control
Quality control covers incoming components, dimensional and assembly checks, electrical and safety-function inspection, trial running and agreed process verification. Buyer samples are recommended for application-specific testing.
FAQ
What materials can this machine process?
The intended materials are Honeycomb, corrugated and composite board. Send representative samples for process confirmation.
Which specifications must be confirmed before quotation?
Please provide target sheet or profile sizes, material structure, required process, output expectations, plant voltage and available layout.
Can the machine configuration be customized?
Yes. Available project options include cutting length and table size, blade and dust collection setup, positioning stops. Feasibility is reviewed against the application.
Will you verify our samples?
Sample review is recommended. It helps confirm feeding, tooling, print or cutting behavior and the appropriate machine configuration.
What utilities and floor information are required?
Please share voltage and frequency, compressed-air availability where relevant, extraction requirements and the proposed installation area.
What is included in quality inspection?
Inspection focuses on assembly, controls, safety functions, trial operation and the agreed process checks before dispatch.
How is the machine packed for shipment?
Export packing is planned around machine size and route, with protected components, secured moving parts and identification for installation.
How do I request a technical quotation?
Send your product samples or drawings, required sizes, process description, target workflow, destination and electrical standard.
Request a Quote
Tell us your application, dimensions, materials or product samples, order destination and technical requirements. Our team will review the project and prepare a B2B quotation based on confirmed specifications.
