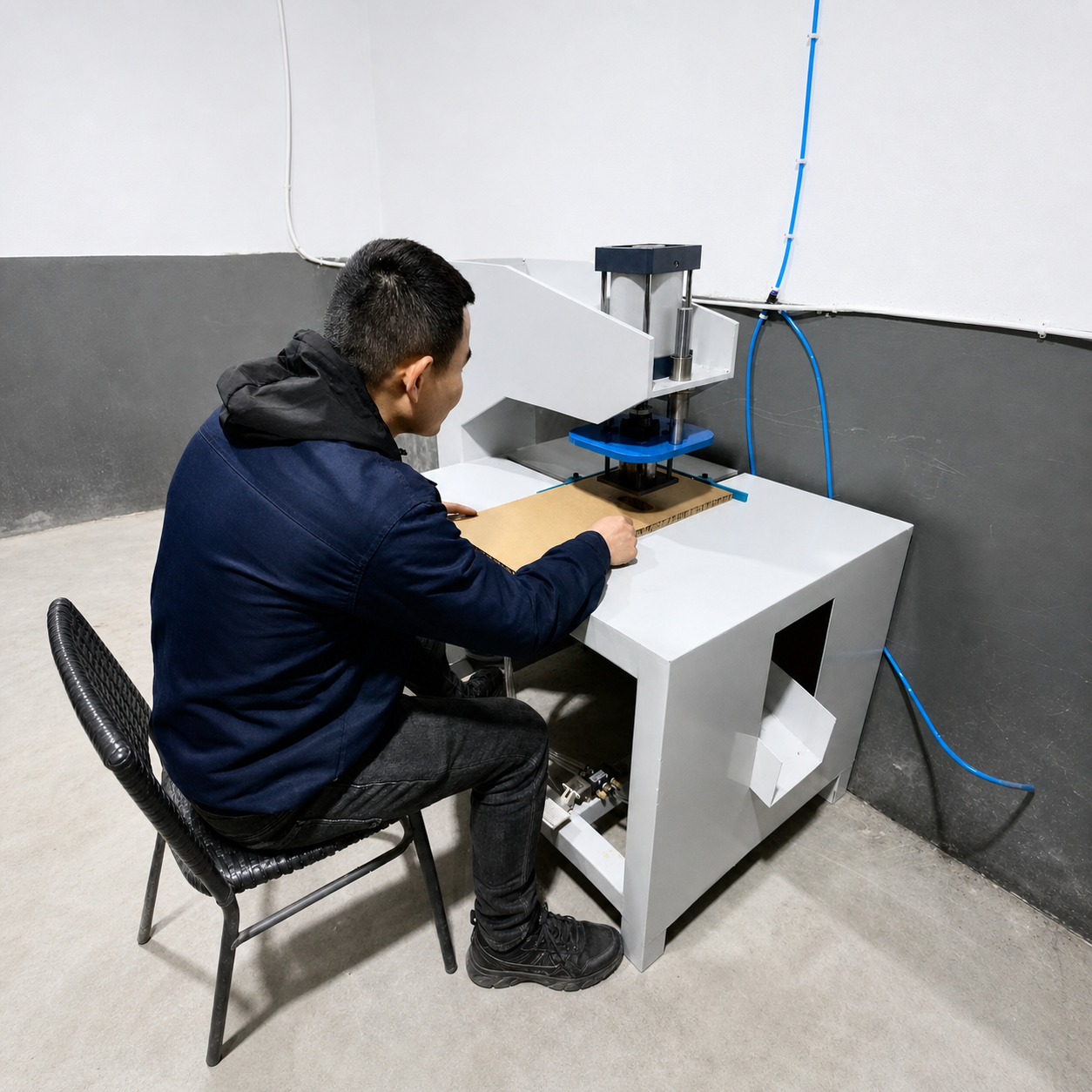

Product Overview
Dedicated punching equipment for honeycomb, corrugated and composite paperboard panels. Purpose-built for punching paper-based structural panels. Handles honeycomb, corrugated and composite board formats. Compact feed range suits holes and localized cut features. It is positioned for packaging manufacturers, converters and engineering buyers evaluating equipment for a defined production process. Configuration should be finalized against the buyer's board samples, target format, utilities, workflow and acceptance criteria.
Key Features
- Purpose-built for punching paper-based structural panels
- Handles honeycomb, corrugated and composite board formats
- Compact feed range suits holes and localized cut features
- Tooling can be matched to required hole geometry
- Operator-guided layout supports custom workpieces
- Simple access assists setup, cleaning and routine checks
Product Specifications
| Model | CK100 |
|---|---|
| Maximum Feed Size | 200 × 1000 mm (existing product data) |
| Materials | Honeycomb, corrugated and composite board |
| Process | Punching / perforating |
Specifications marked as existing product data should be reconfirmed for the final order. Unlisted technical values are supplied after application review.
Applications
- ventilation holes
- cable and handle openings
- honeycomb panel fabrication
- packaging component preparation
- custom board conversion
Customization Options
- punch size and geometry
- tooling layout
- work support and guides
- actuation configuration
- electrical standard
- safety enclosure
Packaging & Shipping
Before shipment, exposed surfaces and moving parts are protected, loose accessories are identified, and the machine is secured in an export-suitable package. Final packing and transport arrangements depend on machine configuration, route and destination requirements.
Manufacturing & Quality Control
Quality control covers incoming components, dimensional and assembly checks, electrical and safety-function inspection, trial running and agreed process verification. Buyer samples are recommended for application-specific testing.
FAQ
What materials can this machine process?
The intended materials are Honeycomb, corrugated and composite board. Send representative samples for process confirmation.
Which specifications must be confirmed before quotation?
Please provide target sheet or profile sizes, material structure, required process, output expectations, plant voltage and available layout.
Can the machine configuration be customized?
Yes. Available project options include punch size and geometry, tooling layout, work support and guides. Feasibility is reviewed against the application.
Will you verify our samples?
Sample review is recommended. It helps confirm feeding, tooling, print or cutting behavior and the appropriate machine configuration.
What utilities and floor information are required?
Please share voltage and frequency, compressed-air availability where relevant, extraction requirements and the proposed installation area.
What is included in quality inspection?
Inspection focuses on assembly, controls, safety functions, trial operation and the agreed process checks before dispatch.
How is the machine packed for shipment?
Export packing is planned around machine size and route, with protected components, secured moving parts and identification for installation.
How do I request a technical quotation?
Send your product samples or drawings, required sizes, process description, target workflow, destination and electrical standard.
