Product Overview

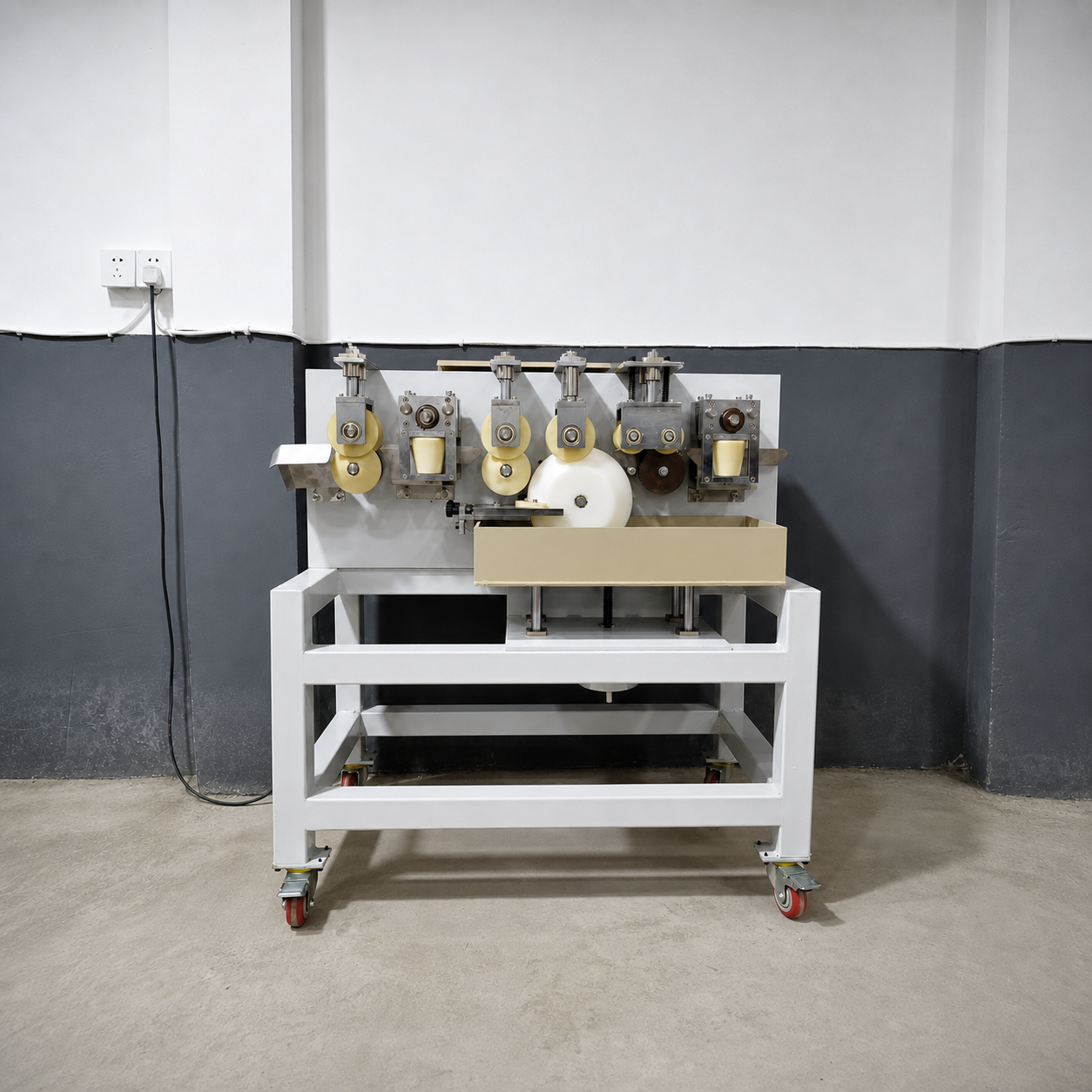

Surface paper coating machine for finished paper angle board and corner protector profiles. Applies a paper surface layer to corner protector profiles. Supports the stated profile thickness and width range. Roller-guided conveying promotes stable profile movement. It is positioned for packaging manufacturers, converters and engineering buyers evaluating equipment for a defined production process. Configuration should be finalized against the buyer's board samples, target format, utilities, workflow and acceptance criteria.
Key Features
- Applies a paper surface layer to corner protector profiles
- Supports the stated profile thickness and width range
- Roller-guided conveying promotes stable profile movement
- Coating improves surface appearance and presentation
- Useful for protective profiles requiring branded or finished paper
- Compact line can follow forming and precede cutting operations
Product Specifications
| Model | KTJ-6D |
|---|---|
| Profile Thickness | 1.5–5 mm (existing product data) |
| Profile Width | 30–50 mm (existing product data) |
| Process | Surface paper coating / wrapping |
Specifications marked as existing product data should be reconfirmed for the final order. Unlisted technical values are supplied after application review.
Applications
- paper edge protector finishing
- printed corner profiles
- pallet packaging components
- retail-ready protective packaging
- angle board converting lines
Customization Options
- profile guide range
- paper feed and coating setup
- roller configuration
- line speed controls
- electrical standard
- infeed and outfeed connection
Packaging & Shipping
Before shipment, exposed surfaces and moving parts are protected, loose accessories are identified, and the machine is secured in an export-suitable package. Final packing and transport arrangements depend on machine configuration, route and destination requirements.
Manufacturing & Quality Control
Quality control covers incoming components, dimensional and assembly checks, electrical and safety-function inspection, trial running and agreed process verification. Buyer samples are recommended for application-specific testing.
FAQ
What materials can this machine process?
The intended materials are the paper-based substrates listed in the specification table. Send representative samples for process confirmation.
Which specifications must be confirmed before quotation?
Please provide target sheet or profile sizes, material structure, required process, output expectations, plant voltage and available layout.
Can the machine configuration be customized?
Yes. Available project options include profile guide range, paper feed and coating setup, roller configuration. Feasibility is reviewed against the application.
Will you verify our samples?
Sample review is recommended. It helps confirm feeding, tooling, print or cutting behavior and the appropriate machine configuration.
What utilities and floor information are required?
Please share voltage and frequency, compressed-air availability where relevant, extraction requirements and the proposed installation area.
What is included in quality inspection?
Inspection focuses on assembly, controls, safety functions, trial operation and the agreed process checks before dispatch.
How is the machine packed for shipment?
Export packing is planned around machine size and route, with protected components, secured moving parts and identification for installation.
How do I request a technical quotation?
Send your product samples or drawings, required sizes, process description, target workflow, destination and electrical standard.
Request a Quote
Tell us your application, dimensions, materials or product samples, order destination and technical requirements. Our team will review the project and prepare a B2B quotation based on confirmed specifications.
