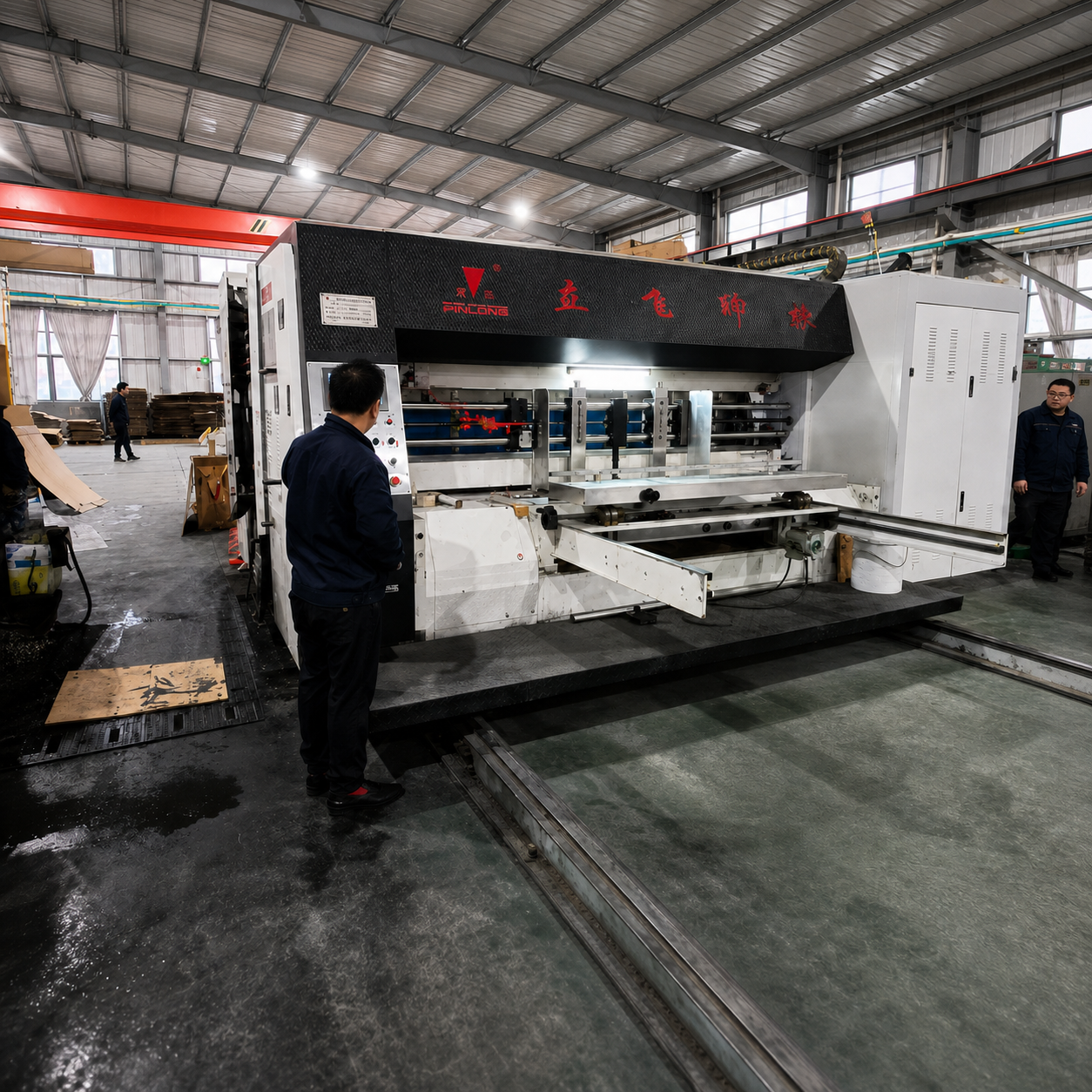

Product Overview
Integrated water-based printing and slotting for corrugated carton converting. Two-color water-based flexographic printing in one pass. Integrated slotting supports carton converting workflow. Designed for large corrugated sheets up to the stated format. It is positioned for packaging manufacturers, converters and engineering buyers evaluating equipment for a defined production process. Configuration should be finalized against the buyer's board samples, target format, utilities, workflow and acceptance criteria.
Key Features
- Two-color water-based flexographic printing in one pass
- Integrated slotting supports carton converting workflow
- Designed for large corrugated sheets up to the stated format
- Registration controls support repeatable multi-color work
- Production settings can be adjusted for board and order requirements
- Inline layout reduces transfers between separate machines
Product Specifications
| Maximum Sheet Size | 2600 × 1500 mm (existing product data) |
|---|---|
| Print Colors | Two |
| Registration Accuracy | ±0.1 mm (existing product data) |
| Rated Speed | Up to 8,000 sheets/hour (existing product data) |
| Substrate | Corrugated board |
Specifications marked as existing product data should be reconfirmed for the final order. Unlisted technical values are supplied after application review.
Applications
- corrugated carton plants
- outer shipping carton production
- appliance carton printing
- industrial packaging converters
- medium and long print runs
Customization Options
- working width and sheet range
- printing unit configuration
- feeding and delivery arrangement
- slotting specification
- electrical standard
- operator interface and line layout
Packaging & Shipping
Before shipment, exposed surfaces and moving parts are protected, loose accessories are identified, and the machine is secured in an export-suitable package. Final packing and transport arrangements depend on machine configuration, route and destination requirements.
Manufacturing & Quality Control
Quality control covers incoming components, dimensional and assembly checks, electrical and safety-function inspection, trial running and agreed process verification. Buyer samples are recommended for application-specific testing.
FAQ
What materials can this machine process?
The intended materials are Corrugated board. Send representative samples for process confirmation.
Which specifications must be confirmed before quotation?
Please provide target sheet or profile sizes, material structure, required process, output expectations, plant voltage and available layout.
Can the machine configuration be customized?
Yes. Available project options include working width and sheet range, printing unit configuration, feeding and delivery arrangement. Feasibility is reviewed against the application.
Will you verify our samples?
Sample review is recommended. It helps confirm feeding, tooling, print or cutting behavior and the appropriate machine configuration.
What utilities and floor information are required?
Please share voltage and frequency, compressed-air availability where relevant, extraction requirements and the proposed installation area.
What is included in quality inspection?
Inspection focuses on assembly, controls, safety functions, trial operation and the agreed process checks before dispatch.
How is the machine packed for shipment?
Export packing is planned around machine size and route, with protected components, secured moving parts and identification for installation.
How do I request a technical quotation?
Send your product samples or drawings, required sizes, process description, target workflow, destination and electrical standard.
Request a Quote
Tell us your application, dimensions, materials or product samples, order destination and technical requirements. Our team will review the project and prepare a B2B quotation based on confirmed specifications.
