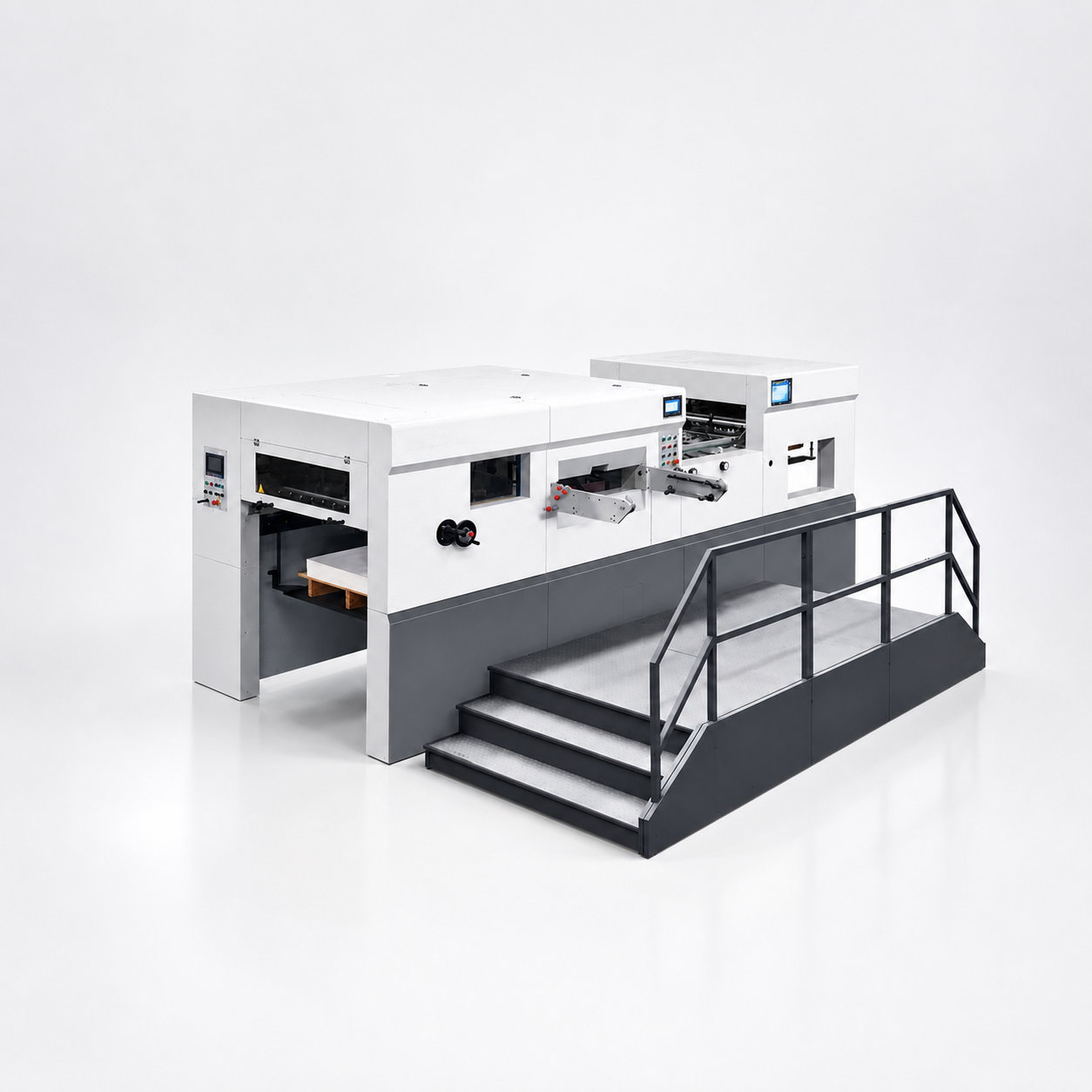

Product Overview
Precision creasing and die cutting for corrugated board and carton blanks. Flatbed platen action supports accurate cutting and creasing. Near-full-sheet cutting area uses the stated feed format efficiently. Semi-automatic operation balances control and throughput. It is positioned for packaging manufacturers, converters and engineering buyers evaluating equipment for a defined production process. Configuration should be finalized against the buyer's board samples, target format, utilities, workflow and acceptance criteria.
Key Features
- Flatbed platen action supports accurate cutting and creasing
- Near-full-sheet cutting area uses the stated feed format efficiently
- Semi-automatic operation balances control and throughput
- Suitable for corrugated board and carton converting dies
- Registration supports repeat repeatability across production batches
- Open working area assists die setup and job inspection
Product Specifications
| Maximum Feed Size | 1500 × 1100 mm (existing product data) |
|---|---|
| Maximum Cutting Size | 1490 × 1090 mm (existing product data) |
| Cutting Accuracy | ±0.25 mm (existing product data) |
| Rated Speed | Up to 3,500 cycles/hour (existing product data) |
| Operation | Semi-automatic platen |
Specifications marked as existing product data should be reconfirmed for the final order. Unlisted technical values are supplied after application review.
Applications
- corrugated box blanks
- display packaging
- carton creasing
- custom die-cut parts
- short and medium converting runs
Customization Options
- working format
- feeding and delivery setup
- die mounting arrangement
- safety guarding
- electrical standard
- auxiliary handling equipment
Packaging & Shipping
Before shipment, exposed surfaces and moving parts are protected, loose accessories are identified, and the machine is secured in an export-suitable package. Final packing and transport arrangements depend on machine configuration, route and destination requirements.
Manufacturing & Quality Control
Quality control covers incoming components, dimensional and assembly checks, electrical and safety-function inspection, trial running and agreed process verification. Buyer samples are recommended for application-specific testing.
FAQ
What materials can this machine process?
The intended materials are the paper-based substrates listed in the specification table. Send representative samples for process confirmation.
Which specifications must be confirmed before quotation?
Please provide target sheet or profile sizes, material structure, required process, output expectations, plant voltage and available layout.
Can the machine configuration be customized?
Yes. Available project options include working format, feeding and delivery setup, die mounting arrangement. Feasibility is reviewed against the application.
Will you verify our samples?
Sample review is recommended. It helps confirm feeding, tooling, print or cutting behavior and the appropriate machine configuration.
What utilities and floor information are required?
Please share voltage and frequency, compressed-air availability where relevant, extraction requirements and the proposed installation area.
What is included in quality inspection?
Inspection focuses on assembly, controls, safety functions, trial operation and the agreed process checks before dispatch.
How is the machine packed for shipment?
Export packing is planned around machine size and route, with protected components, secured moving parts and identification for installation.
How do I request a technical quotation?
Send your product samples or drawings, required sizes, process description, target workflow, destination and electrical standard.
Request a Quote
Tell us your application, dimensions, materials or product samples, order destination and technical requirements. Our team will review the project and prepare a B2B quotation based on confirmed specifications.
